1So - EXT, 1So INT, 8 ab (1 θέση για ISDN γραμμη πόλεως, 1 θέση για ISDN εσωτερικό δίαυλο, 4 θέσεις αναλογικών εσωτερικών τηλεφώνων, με αναγνώριση κλήσης, μία θέση επέκτασης για κάρτα ELMEG Module 2 S0 V2.0 ή ELMEG 4ab module V2.0 ή ELMEG Module 2 POTS)

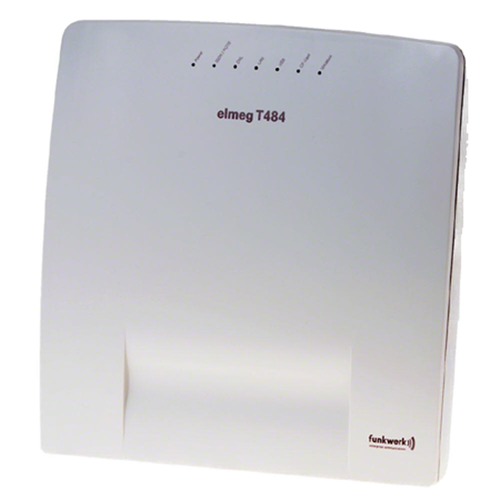

Tο Elmeg T484 είναι ένα συμπαγές σύστημα που έρχετε με 8 θέσεις αναλογικών τηλεφώνων, μία ISDN γραμμή πόλης και και μία ISDN εσωτερική θύρα για σύνδεση δύο ψηφιακών συσκευών, μπορεί να επεκταθεί κατά 4 αναλογικά τηλέφωνα, ή κατά μια ISDN γραμμή πόλης και μια ISDN εσωτερική θύρα για σύνδεση δύο ψηφιακών συσκευών . Το ενσωματωμένο router επιτρέπει την πρόσβαση στο Διαδίκτυο και, προαιρετικά, τηλεφωνία VoIP. Το T484 έχει επίσης ενσωματωμένο σύστημα προαπάντησης κλήσεων και φωνητικό ταχυδρομείο.
Base Module:
- 1 x S0 internal / external usable
- 1 x S0 internal
- 8 x a/b internal
- Integrated IP-Router for Internet access via xDSL or ISDN with:
- 1 xDSL/WAN interface Ethernet (for external xDSL modem)
- 1 LAN interface,10/100 Mbps Fast Ethernet
- 1 LAN interface USB
- LEDs for indication of Power, ISDN, LAN, WAN
1 module slot for expansion with:
- Module 2 x S0, of which 1 x S0 internal/external, 1 x S0 internal
or
- Module 4 x a/b internal
or
- Module 2 POTS (connection of 2 analogue exchange lines)
or
- Module 4 POTS (connection of 4 analogue exchange lines)
1 slot for:
- Module TFE (door hands free)
or
- Module contacts comprising 6 signal inputs/sensors and 3 switching contacts/actuators
1 slot for:
- Module 4 DSP for direct connection to SIP provider
And 1 slot for:
And in addition:
- FSM (fine protective module against excess voltage)
Features
- 2 digitale exchange line channels (1 external S0; Point-to-mulitpoint/Point-to-point ISDN access)
- 2 digital internal channels (1 internal S0; for connecting elmeg system telephones or standard ISDN terminals)
- Voice box functionality and WAV applications using CF card (opt.)
- System telephony with elmeg system telephones
- Max. 12 a/b ports
- CLIP and charge pulse on all ports
- Integrated IP router for Internet access via xDSL or ISDN with:
- 1 xDSL/WAN-Ethernet inter-face (for external xDSL modem)
- 1 LAN Interface,10/100 Mbit-Fast-Ethernet
- 1 LAN Interface USB
Optional extension with
- Module 4 a/b for providing 12 ports
- Module 2 S0 for expansion using two internal or one internal and one external S0 port.
- Module 2 / 4 POTS V.2 to connect the T484 to two or four analogue outside lines
- CF card to realise up to eight voice boxes and a max. of four WAV applications
- 4 DSP module for the con-nection of a SIP provider
And also:
- Routing performance:> 2 Mbit/S with xDSL
- Use of fixed or dynamic IP addresses (PPPoE) for xDSL
- Integrated Packet Filter Firewall, with chargable filter sets, NAT
- Automatic Fallback xDSL to ISDN programmable
- TAPI and CAPI in the LAN
- LEDs for Power, ISDN, LAN, WAN
Comprehensive software package including
- elmeg WIN Tools (supplied on CD-ROM)
- elmeg Professional Configurator
- elmeg Control Center
- elmeg Telephone Directory Manager
- elmeg Charge Manager
- elmeg Web Interface for LCR Professional
- elmeg TAPI Manager
- elmeg Download-Manager
- Filter Wizard for easy configuration of firewalls
- System configuration and firmware updates via USB, S0 internally and remotely, or LAN ports (TCP/IP)
Current features
- Integrated xDSL/ ISDN router with Packet Filter Firewall and NAT
- LCR feature including gateway support
- Connection of a door terminal adapter to the analog ports
- Automatic completion of calls (CCBS, CCNR) in the network and internally
- Individual and team functions
- Busy-on-busy
- Team calls to an MSN extension number (team number)
- Deflecting calls without answering (CD, Call deflection)
- Charge credit for each subscriber (pocket money)
- CLIP (number display) supported by all analog ports
- Call rerouting programmable from a remote location (Follow me)
- Memory for 500 charge data records, overflow indication by LED
- Centralized switching of day/night modes
- Day/night call mode controlled by date/time (incl. day of the week control)
- Alphanumeric telephone directory with 500 entries
Φυλλάδιο προϊόντος (elmeg_T484.pdf, 433 Kb) [Λήψη]
